ASTM A335/ASME SA335
P9 Seamless Ferritic Alloy-Steel Pipe
ASTM A335/ASME SA335 P9 Seamless Ferritic Alloy-Steel Pipe
Short Description:
ASTM A335 P9 Seamless Pipe for High-Temperature Service,A335 P9 Seamless Pipe reheated and furnished in the full-annealed, isothermal annealed, or normal-ized and tempered condition. the minimum tempering temperature are 1250°F [675°C].
Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
ASTM A335 P9 Seamless Ferritic Alloy-Steel Pipes cover nominal (average) wall seamless alloy-steel pipe intended for high-temperature service.
| Grade | Standard | Country |
| STBA26 | JIS G3462 | Japan |
| T9 | ASTM A213 | U.S.A |
| HT7 | SAVDNIK | Sweden |
ASTM A335 P9 Seamless Ferritic Alloy-Steel Pipe Quick Details
Manufacture:Seamless process ,Hot-finished or Cold-finished
Wall thickness(WT): 2.1mm——20 mm.
Outer diameter (OD): 21 mm——509mm
Length: 6M or specified length as required.
Ends: Plain End, Beveled End, Threaded
Additional Info
Port of Shipment: Tianjin, China
Payment Terms:T / T, LC
Delivery: 7-15 days after payment
Surface: Tubes will be varnished (Outside only) to prevent rust.

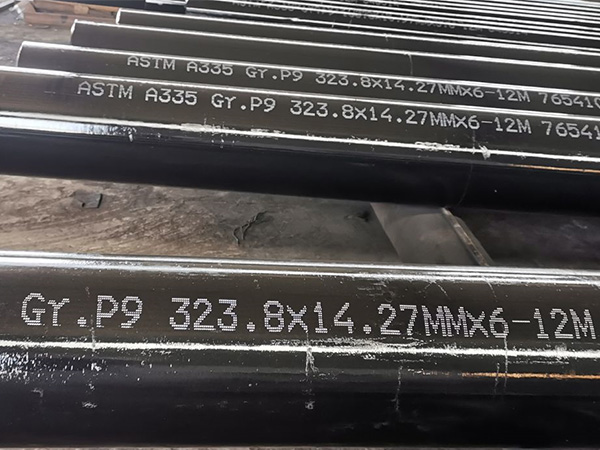

Marking: Standard + Steel Grade + Size + Heat No + Lot No
Package: Bundles (hexagonal),Wooden Boxes,Crates (steel/wooden) or as required
Materials and Manufacture
Grade P9 Pipe may be either hot finished or cold drawn with the finishing treatment.
Heat Treatment:
P9 Seamless Ferritic Alloy-Steel Pipe will be reheated and furnished in the full-annealed, isothermal annealed, or normal-ized and tempered condition. If furnished in the normalized and tempered condition, the minimum tempering temperature are 1250°F [675°C].
Chemical Composition of ASTM A335 P9
| Grade | Chemical Composition(%) | ||||||
| C | Mn | P | S | Si | Cr | Mo | |
| P9 | ≤0.015 | 0.30-0.60 | ≤0.025 | ≤0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 |
Mechanical Properties of ASTM A335 P9
| Grade | Mechanical property | ||
| Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) | |
| P9 | ≥415 | ≥205 | ≥30 |
Outside diameter tolerances of ASTM A335 Seamless Ferritic Alloy-Steel Pipe
| NPS Designator | Over | Under | ||
| in. | mm | in. | mm | |
| 1⁄8 to 1 1⁄2 , incl. | 1 ⁄ 64 (0.015) | 0.40 | 1 ⁄ 64 (0.015) | 0.40 |
| Over 1 1⁄2 to 4, incl. | 1 ⁄ 32 (0.031) | 0.79 | 1 ⁄ 32 (0.031) | 0.79 |
| Over 4 to 8, incl. | 1 ⁄ 16 (0.062) | 1.59 | 1 ⁄ 32 (0.031) | 0.79 |
| Over 8 to 12, incl. | 3 ⁄ 32 (0.093) | 2.38 | 1 ⁄ 32 (0.031) | 0.79 |
| Over 12 | ± 1 % | |||
Hydrostatic Test
Each length of pipe shall be subjected to the hydrostatic test or nondestructive examination.
Mechanical Tests Required
Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test—For material heat treated in a batch-type furnace, tests shall be made on 5 % of the pipe from each treated lot.
For small lots, at least 1 pipe shall be tested. For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5 % of the lot, but in no case less than 2 pipe.
Marking
In addition to the marking prescribed in Specification A 999/A 999M, the marking shall include the length, the ANSI schedule number and the heat number or manufacturer’s number by which the heat can be identified.
Ordering Information
Orders for material includes the following, as required, to describe the desired material adequately:
(1) Quantity (feet, centimetres, or number of lengths),
(2) Name of material (seamless alloy steel pipe),
(3) Grade (P9),
(4) Manufacture (hot-finished or cold-drawn),
(5) Size (NPS or outside diameter and schedule number or average wall thickness),
(6) Length (specific or random),
(7) End finish (Ends Section of Specification A 999/A 999M),
(8) Test report required (Certification Section of Specification AA 999/A 999M),
Note: Material furnished under ASTM A335 conform to the applicable requirements of the current edition of Specification A 999/A 999M
